5 Axis Milling

Prototype and automated production for 3+2 and simultaneous 5-Axis milling
Great for complex parts

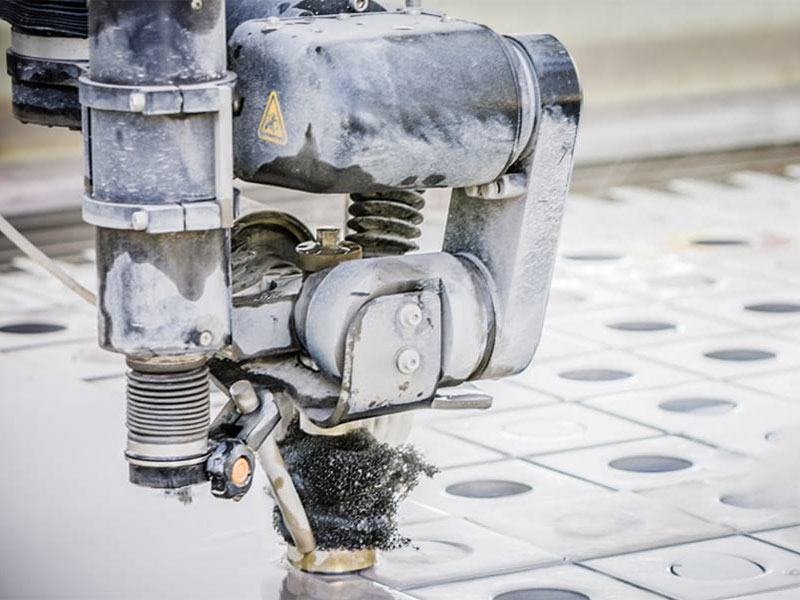

Abrasive Waterjet

Abrasive Waterjet

Precision 2-axis cutting with taper comp for any size part in any material

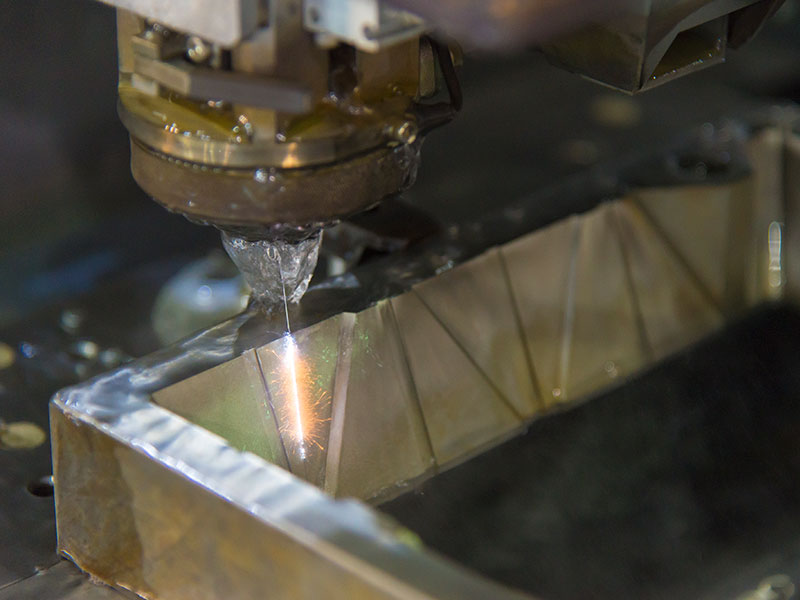

Wire EDM

4-Axis, tight-tolerance, and fine detail in any conductive material

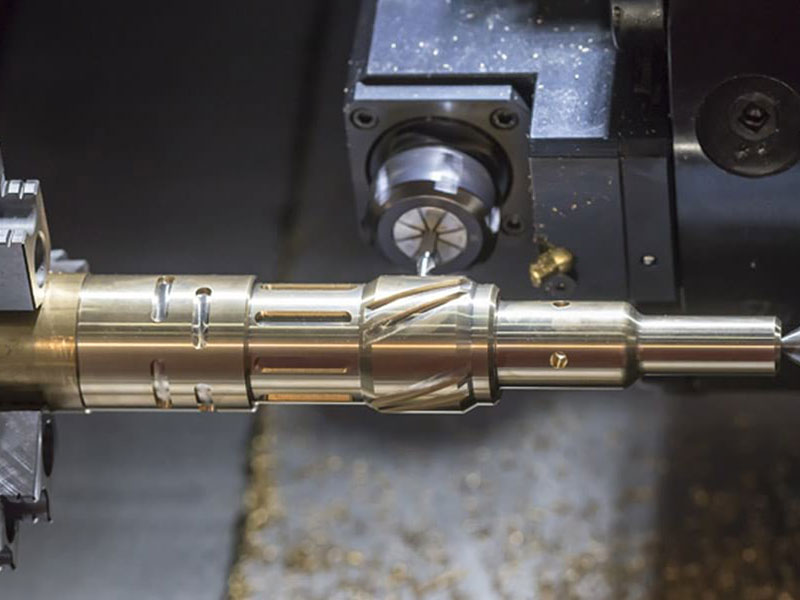

CNC Lathe Services

CNC Lathe Services

Production multi-spindle turning with live tooling
Automated for maximum efficiency

CNC Milling Services

CNC Milling Services

Precision 3-axis and 4-axis milling for large and small production runs
Spindle speeds up to 24,000 rpm

Prototype Machining

Prototype Machining

Prototype machining for the parts other shops say can't be done
World-class talent and cutting-edge techniques

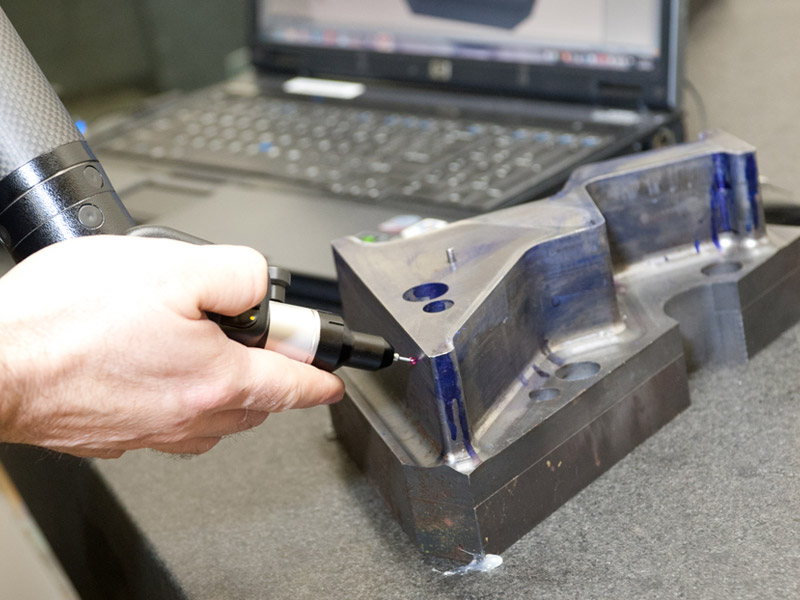

Reverse Engineering & Consulting

Reverse Engineering & Consulting

Replace OEM parts to improve performance, reduce cost, and shorten lead times
Design for Manufacturability Consulting

Swiss Turning

Complex turned parts up to 1.25” diameter
Prototype and automated production

Machinery List & Capabilities

Follow US on Instagram for behind the scenes action.

We are staying busy. Here are some pictures of ra

We are staying busy. Here are some pictures of random production jobs around the shop in various states of completion. Some are high volume running automated and some are lower volume. We also want to remind everyone to watch the @spacex launch today. This is the first manned mission ever attempted by a private company and the first crewed flight launched from the USA since the end of the space shuttle program almost 9 years ago. Our whole shop is taking a break to watch the launch at 3:33 CST today!

This is a production job we were running automated

This is a production job we were running automated last week. These stainless steel parts used to be run 3-axis, but we had issues with flatness so we switched them to 5-axis to finish the flats with a side cut. We are off today and are even letting the robots have a break.

Here is another shot at this impeller test part th

Here is another shot at this impeller test part that we programmed with @autodesk powermill. We used this program that was over 250,000 lines long to test high speed machining and surface finish on a machine we are considering purchasing. We liked the program and wanted to use it to learn a little more about the finish capabilities on our existing machines. This one was run on our @fanucamerica #robodrill at 24000rpm. We programmed each blade with different stepover and tolerance values. The roughest is a .01" step at .0005" tolerance and the smoothest is .002" step with a .0001" tolerance at 190ipm. This was finished with a .125" @garrtool ball endmill.

Flashback to yesterday... I visited @ellisontech t

Flashback to yesterday... I visited @ellisontech to check out a @doosanmta DNM 4500S mill. We did a lot of trochoidal milling with teeny @garrtool endmills to try to trip up the control and max out the look ahead but it did great. The tool in the video is .125" diameter Garr Alumastar running at 15000rpm and 60ipm. It did great on the next blade at 120ipm.

Heading into work for a couple hours on a day this

Heading into work for a couple hours on a day this nice isn't too bad when you get to have a little fun first... Volume up for the short video! #wagnermachineco #saturday #nova #383stroker #72nova #streetmachine #machineshop #instamachinist @hoodmachining
